j5create JCA374-N USB Type-C Multi-Adapter

SKU

JCA374

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AUD $67.68 AUD $61.53

In stock

JCA374 USB-C® Multi-Adapter, Metallic Champagne

Notify me when the price drops

Supports HDMI™ resolutions up to 4K @ 30 Hz
Reliable network connectivity via the Gigabit Ethernet port with LED indicators
Power your laptop with up to 60W pass-through charging using this adapter and a USB-C® power adapter
2 x SuperSpeed USB™ 5 Gbps ports to connect additional peripherals transfer speed
Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
Compact and lightweight design for maximum portability

Category: Notebook Docks & Port Replicators

More Information

More Information
SKU	JCA374
EAN	4712795081039
Manufacturer	j5create
Availability	Y
Product Manuals (HTML)	View Manual

Reviews

Nickname

Summary

Review

Reasons To Buy

4K Video

Transmits both audio and video from a USB-C computer or tablet to a 4K Display (Driver not required)

Power Delivery

Supports upstream charging & power delivery 2.0 via USB Type-C charging Port

Gigabit Ethernet

Quickly connect your computer with USB-C

USB-C Compatible

Designed to work with computers equipped with the newest USB-C port

Surge Protection

The JCA374 is equipped with surge protection so you can safely charge your devices

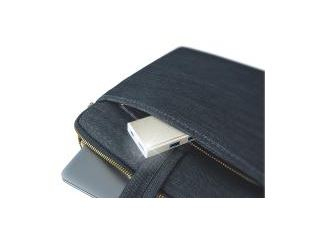

Thin and Sleek Design

Premium Gold Aluminum Casing with a 9.8 inch cable, perfect for your Notebook

Description

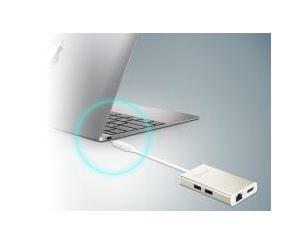

Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 2.0, it supports upstream streaming ensuing your connected laptop powered up while in use.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Connectivity technology	Wired
Host interface	USB Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Microphone in	No
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	60 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Gold, White
Country of origin	Taiwan
Card reader integrated	No
Compatibility	Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2
Data transfer rate	5 Gbit/s
Housing material	Aluminium
Colour name	Metallic Champagne
Operating temperature (remote control) (T-T)	0 - 40 °C
Graphics
Maximum resolution	3840 x 2160 pixels
Storage
Card reader integrated	No
Power
Power consumption (typical)	1.15 W
Output voltage	5 V
Output current	0.22 A
USB cable length	0.1 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Control unit
Operating temperature (remote control) (T-T)	0 - 40 °C

Operational conditions
Operating temperature (T-T)	0 - 37 °C
Storage temperature (T-T)	-10 - 65 °C
Weight & dimensions
Width	50.5 mm
Depth	96.5 mm
Height	15 mm
Weight	73.5 g
Package width	193 mm
Package depth	125 mm
Package height	25 mm
Package weight	153.5 g
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Gold, White
Country of origin	Taiwan
Packaging data
Quantity per pack	1 pc(s)
Package width	193 mm
Package depth	125 mm
Package height	25 mm
Package weight	153.5 g
Packaging content
Drivers included	Yes
Quick start guide	Yes
Packaging content	1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide
Quantity per pack	1 pc(s)
Technical details
Box contents	1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide
Master (outer) case GTIN (EAN/UPC)	24712795081033
Warranty period	2 year(s)
Voltage	5 V
Special features	Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
Shipping (inner) case width	21.2 cm
Shipping (inner) case net weight	1.54 kg
Shipping (inner) case length	26.9 cm
Shipping (inner) case height	13 cm
Products per master (outer) case	30 pc(s)
Master (outer) case width	280 mm
Master (outer) case gross weight	5.64 kg
Master (outer) case length	430 mm
Master (outer) case height	235 mm
Products per shipping (inner) case	10 pc(s)
Logistics data
Shipping (inner) case width	21.2 cm
Shipping (inner) case net weight	1.54 kg
Shipping (inner) case length	26.9 cm
Shipping (inner) case height	13 cm
Products per master (outer) case	30 pc(s)
Master (outer) case width	280 mm
Master (outer) case gross weight	5.64 kg
Master (outer) case length	430 mm
Master (outer) case height	235 mm
Products per shipping (inner) case	10 pc(s)
Export Control Classification Number (ECCN)	EAR99
Other features
Voltage	5 V
USB ports quantity	3
Compatible operating systems	Windows® 10 / 8.1 macOS® 10.10 and later Chrome OS™
Cable type	USB-C
Cable length	0.1 m
Special features	Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
